AOLISHENG 330lbs DIY Heavy Duty Slide Rails Industrial Drawer Slides 1 Pair - A2071

Full Extension Heavy Duty Drawer Slides

330LB heavy-duty drawer slides, with a service life of 30 years The three-section guide rails are all made of thickened Q235 steel plates with a thickness of 2mm.

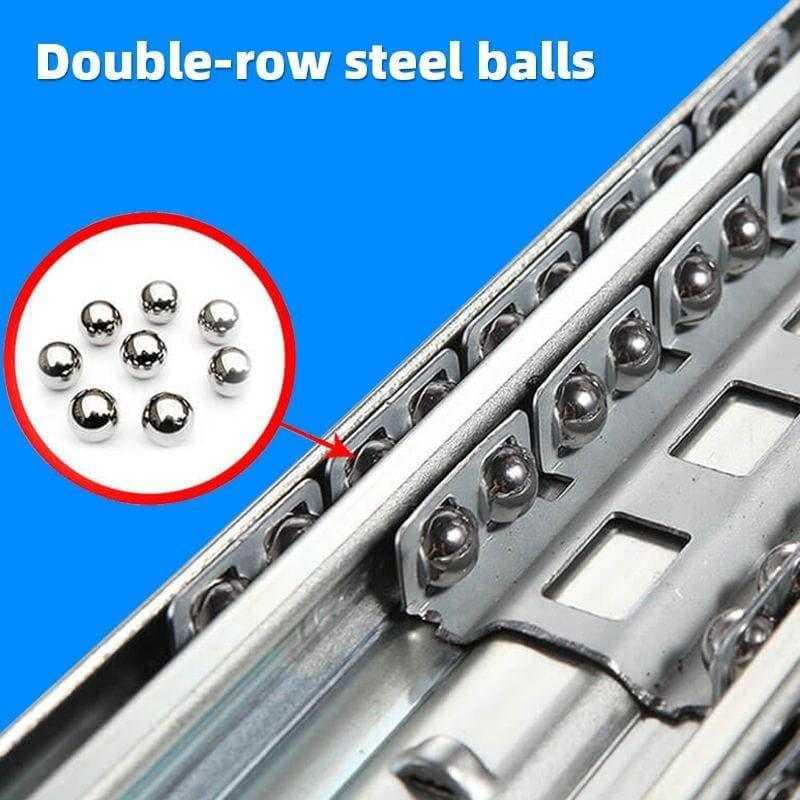

Sturdy ball bearing guide rail design, easy to install. Even when carrying heavy objects, keep the drawer sliding smoothly.
suitable for car modification, mechanical equipment , shelf toolbox

Discover more about the Heavy Duty Drawer Slides

• You will get
  You will receive one pair (two pieces) of heavy-duty drawer slides, specially designed to handle your toughest storage needs. Please note, screws are not included—you can purchase M6 screws separately for easy installation.

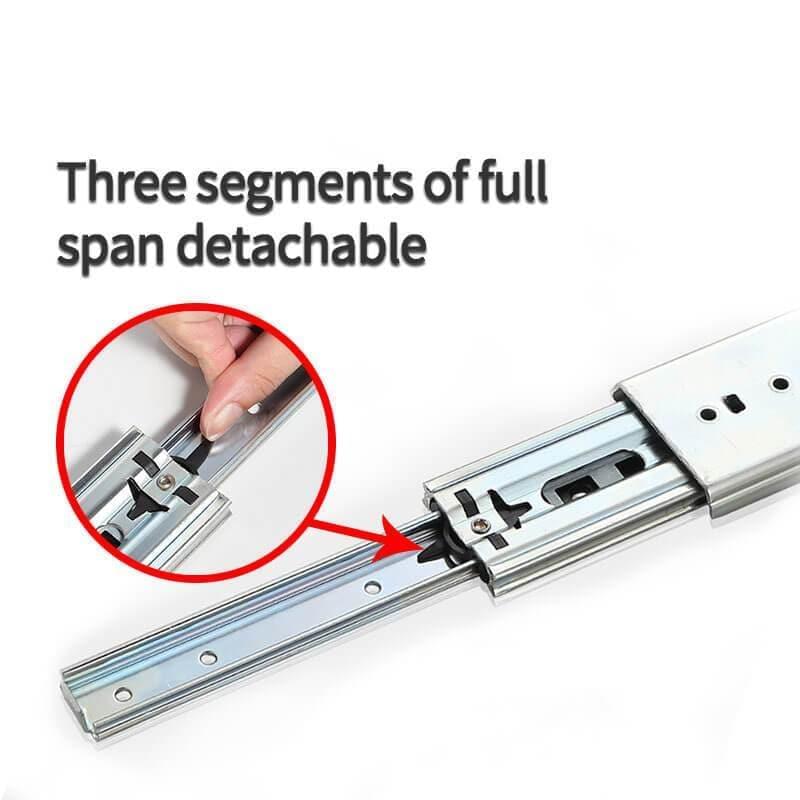

• Full Extension Design Easy to Stored
  The full-extension, three-section design allows you to pull the drawer completely out, ensuring easy access to all stored items without any hassle.

• Supports Up to 330 lbs
  Crafted from 2.0mm thick Q235 cold-rolled steel, these slides offer exceptional strength and durability, supporting up to 330 pounds. Built to withstand even the heaviest loads without bending or warping. After testing, the number of opening and closing times has reached more than 50,000 times.

• Double Anti-rust
  The surface of the slide rail is treated with galvanized blue sealing process, which isolates the rail from direct contact with air and water, and increases anti-oxidation and anti-corrosion. Easy to clean and wide range of utility.

• Easy, DIY-Friendly Installation
  Installing these heavy-duty drawer slides is a breeze! To make the process even easier, we provide a detailed installation video tutorial. Within minutes, you'll have your drawer ready for use.


Installation Precautions:

• When installing the slide rail: Please leave 0.77 inches of slide rail space on both sides to prevent the slide rail from being stuck during use or accidentally damaged during installation.
• To ensure the safety of users, the heavy-duty slide rails cannot be disassembled.
• Due to different usage scenarios, this product does not contain screws, and M5 screws can be bought by yourself.
• Rails start at 18 inches and reduce weight by 10lb for every additional two inches.

Product Dimensions:

• Width: 71MM
• Thickness: 2 MM
• Include Size: 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 inch

Craft：

• Material: Q235 cold rolled steel
• Bearing：Carbon steel solid steel ball
• Deal With: surface electroplating blue zinc

Installation Requirements：

• Installation thickness: 19±0.5mm
• Load capacity: 150KG/330LB
• Installation method: side mount
• Plate Thickness: Outer Slider (2mm) / Middle Slider (2mm) / Inner Slider (2mm)

Application Scenario：

shelves, cabinets, industrial drawers, RVs, trucks, woodworking, vending machines, etc.
