AOLISHENG slide rail is the earliest professional manufacturer engaged in industrial system application slide rails. Three-section steel ball fully drawn heavy duty slides with a load of 68 kg 220 kg
Today we will focus on the heavy duty drawer slide with lock of the 76 series

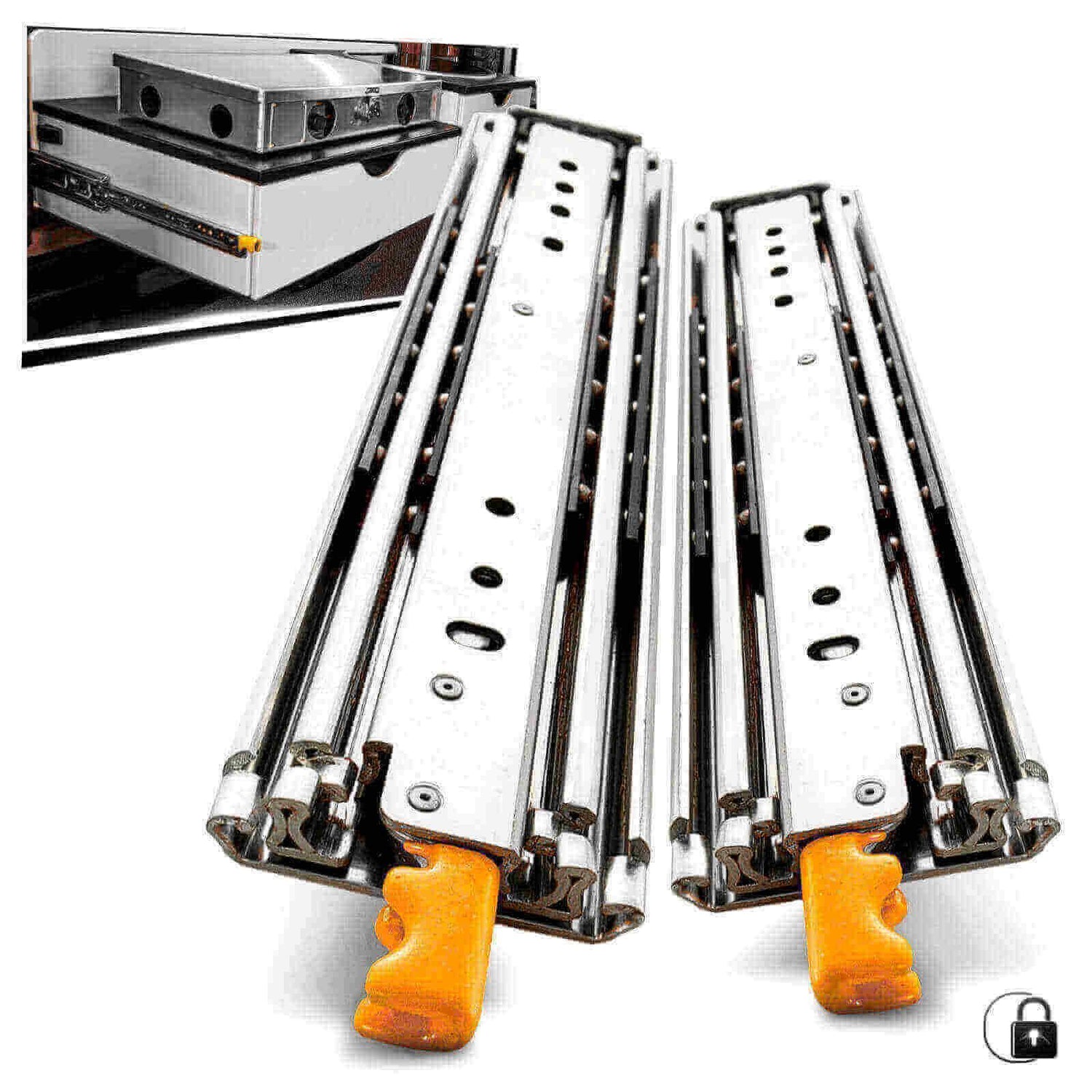

What is a heavy duty locking drawer slides
The belt lock is a two way fixed device. It can be locked when pulled out and closed completely. When pulling out and closing, colleagues need to hold down the lock handles on both sides to open and close. It cannot be locked at any position in the middle, which provides safety protection. effect. The characteristics of self-locking slide rails: including fixed rail, moving rail, rolling support device and self-locking device: the moving rail is installed on the fixed rail, and the rolling support device rotates between the two, and the fixed rail is also equipped with a self locking device. The device has an effect on the moving rail.

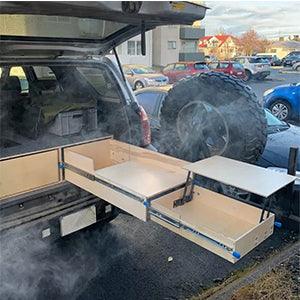

At present, the traditional slide rail or embedded slide rail, the outer rail is installed on the cabinet body, the inner rail is installed on the drawer side panel, and the middle rail is slidingly connected with the outer rail and the inner rail to realize the drawer sliding completely pulled out or Closed on the cabinet. Easy to install and simple in structure, it is used in industrial machinery, RV transformation, industrial cabinets, electronic equipment, heavy-duty drawers, ATM machines, refrigerators, military systems and other fields. People in various industries and fields/professionals do professional things.
❸ Modern drawers mostly adopt ordinary drawing structure, which brings certain safety problems while being convenient to draw. For drawer slides without lock function, the drawer may automatically slide open when the drawer is bumped during transportation. It is easy to cause items to scatter and lose, and it is also easy to damage the slide rails and drawers. Often when installing drawers or placing drawers on some uneven ground, if the bottom of the drawer is higher on the ground, the drawer may automatically slide open due to gravity, which is very inconvenient , So the load-bearing drawer is safer and more practical.
❹ The belt lock is a two-way fixed device. It can be locked when pulled out and closed completely. When pulling out and closing, you need to hold down the lock handles on both sides at the same time. It has the function of self-locking, and it will not fall out when the drawer is tilted.
How much can the load-bearing capacity of the 76 wide-band lock slide rail reach? (Quality inspection)
❶ The 18-inch test load is 220kg, and the marked load-bearing capacity is: the load-bearing range within 18 inches, the load-bearing outside 18 inches is relatively weak, the longer the length, the greater the resistance, the lower the load-bearing capacity, and the load-bearing capacity is required for every 2 inches long. Relative decrease of 3 kg
Click to understand "76 wide heavy duty drawer slide rail"
